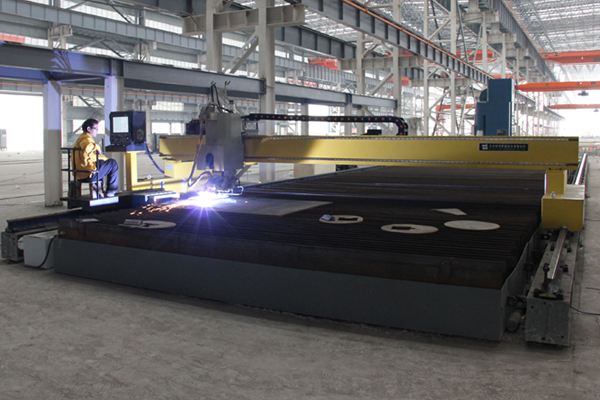

TDC IV-A Unlimited rotary type CNC cutting machine

Feature code👩🏻‍✈️：

Mainly used in shipbuilding, heavy duty pressure vessel, and huge steel structure industry etc.

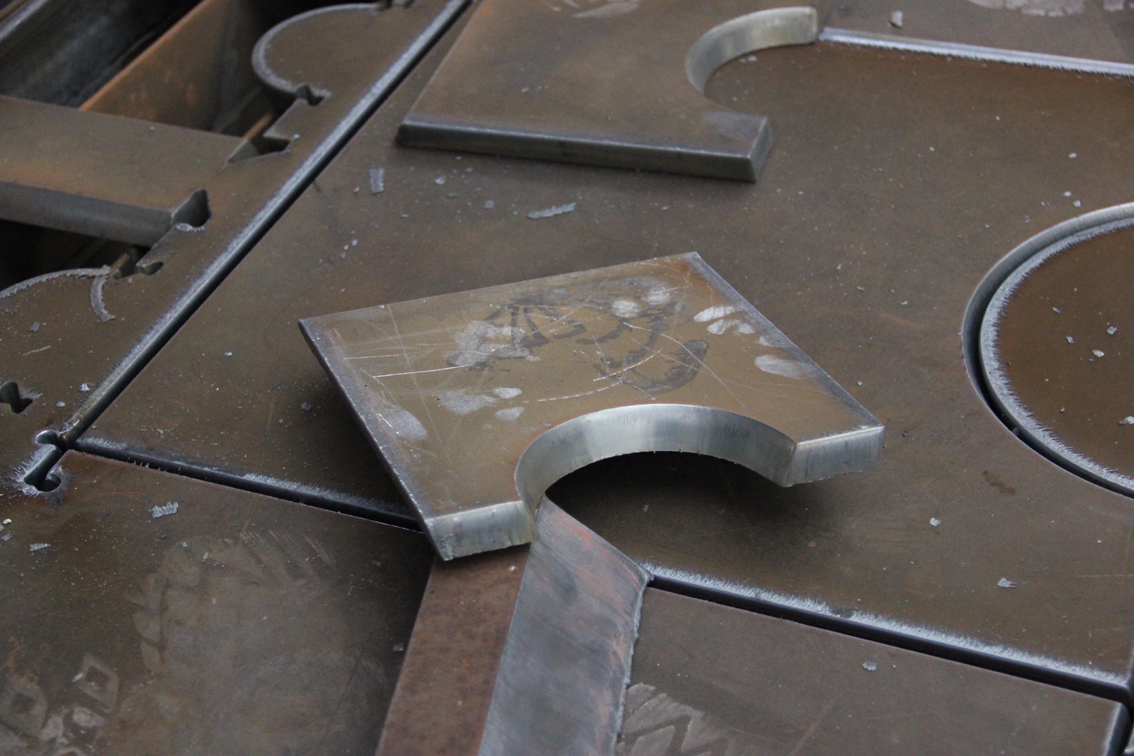

Fixed angle and variable angle bevel of any geometric curve available.
The longitude rail is 43KG class rail. Latitude track is linear rail.
AC servo driving, transmission adopts precision planetary gear reducer.
Heavy gantry frame structure beam, dual drive.
Double anti-collision protection function of cutting torch.
The rotary head adopts the spatial linkage mechanism.

Track width (mm)	4000	4500	5000	5500	6000
Effective cutting width (mm)	3100	3600	4100	4600	5100
Overall width of machine (mm)	4800	5300	5800	6300	6800
Effective cutting length (mm)	Rail length—2500 (Can be customized)
Deflection angle of cutting torch (°)	-45～＋45
Groove type	Groove-V, Groove-X or Groove-Y, Variable angle bevel
CNC system	EDGE Connect
Optional fine plasma power source	Hypertherm or Kjellberg
Nesting software	Australia Fastcam software

Note: The above parameters are for TIME standard product configurations, and can be customized according to the customer’s requirements.
